Hello folks...

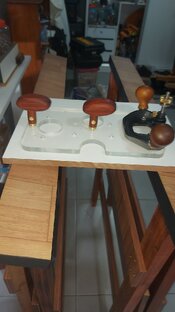

At this time I made a pair of knobs for my router plane acrylic base .
I was using same knobs for both bases and now I have an extra pair.
The shape I copied from a #20 biscuit and transfered to a MDF template.
They are very comfortable at hands .
See the pictures below:

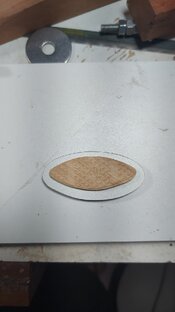

The biscuit was sanded because rough edge

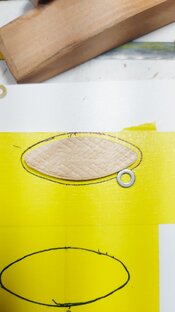

MDF template

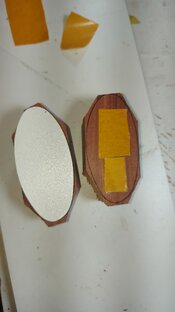

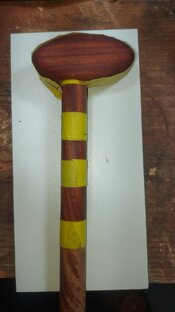

Ready to sand

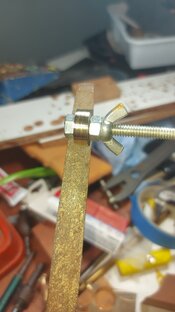

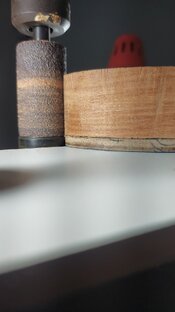

Template sander
3/8 " roundover bit at edges

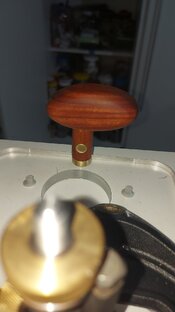

The round part has a tapped hole.The washer works as a spacer because I cutted short at first.

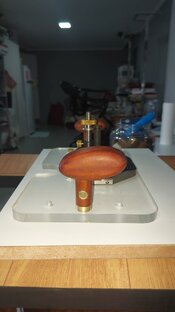

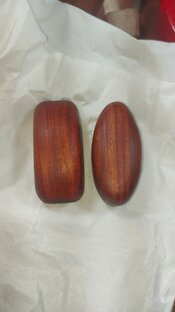

The shape

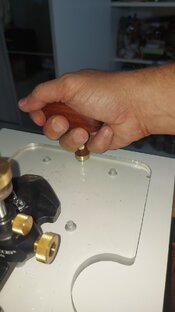

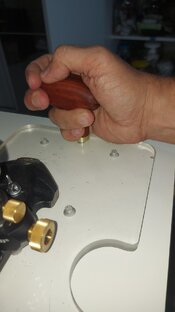

Very comfortable

Last edited:
A

Asssiss

Member
Full Member
Messages
105
Reaction score
390
Location
Brazil
First name
Emerson
  • Thread Starter Thread Starter
  • #2
During the process I cutted the "neck" shorter...it is a bad feeling when we do this having a lot of wood yet.
So using a brass plate and a holesaw (24 mm outside diameter means 20 mm inside.)
The diameter of wood is 3/4" so I glued using epoxy and sanded to fit perfect match brass/wood

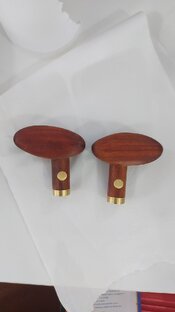

The mistake added charm at final.

Wood enough

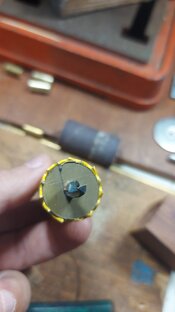

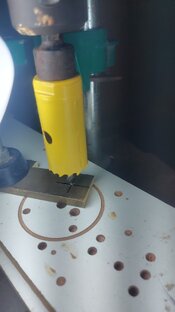

That holesaw from kit never used before
The inside diameter is what you need
File a little and sand perfect after glued

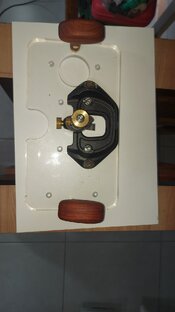

Other position for hand
The 5 mm screw locked at round tapped bar
