What are these for ??

TimR

Sawdust Engineer
Full Member
Messages
5,851
Reaction score
9,664
Location
Lake Park, GA
First name
Tim

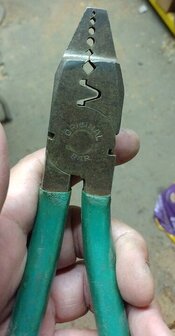

I was tempted to consider a swaging tool but I stopped to think about how I’ve heard the terms applied. I would agree this is a crimping tool, not a swaging tool. i am curious about the small cylindrical section near the tip, which partially fits description of Swager. Over 15 years in the field working with power plant controls and I don’t recall seeing this particular crimper. May be the more versatile electricians and instrumentation engineers who covered my backside more than once knew without asking!

Crimping:​

Crimping is a method of joining two metals together that is often accomplished with a hand-held tool. When crimping, two metals or metal and plastic are forced together with a single compression force. The area that is compressed becomes deformed with a divot and thus is no longer cylindrical. For example, crimping is used in the electrical industry to keep wires organized and to fuse wires together. Electricians will use a crimper tool to crimp a fitting on wires to connect them to another wiring component or to other wires. Crimping is used when weight requirements are not a concern. Although crimped pieces should hold together when tugged on, they are not meant to support heavy weight. The crimping processes is mostly used for smaller applications and is often done while performing another task – such as completing the electrical wiring for a building.

Swaging:​

On the other hand, swaging is a metal forming method that requires application specific machinery. Swagers are capable to handling a wide size-range of applications. Some swaging machines are so large that they have the capacity to shape tubing with a up to a 6-inch diameter, while other swager models are much smaller and can fit on a tabletop or workbench. Different from crimping in many ways, swaging is the process of shaping metal (forging) by a series of multiple very rapid, blows delivered by rotating hammers and forming dies around a piece of work. Swagers are used for small and large-scale assembly applications where a fitting is set over a wire cable, then inserted into the swager dies and the forming force of the hammer action produces a single completely assembled piece. When swaging is used for an assembly application, the two metal pieces are compressed with such force that they are conjoined and essentially bonded together. Swaging is used to create wire rope because after fittings are applied the swaged cable can lift and hold thousands of pounds. Swaging ensures the assembled product has a strong pull-force. When swaging for the purpose of an assembly application, a circular shape is kept around the cable. This is important for processes within the military industry because their applications require tight tolerances. Swagers are also commonly used for cable wire assembly applications in the sailing industry for rigging equipment, and for architectural cable railings and recreational ropes course cables.

While there are many more uses than discussed above for both crimpers and swagers, the application often determines which metal forming method should be performed. The crimping of wires and fittings is used for simple and small-scale electrical applications that require two wires to connect, but not to hold or lift weight. Using a hand-held tool does not forge the metals or plastics to the wire enough for them to be weight bearing. For applications where pull-force is a consideration a swager will often be used. Swaging machines are stronger than crimper tools and can perform many applications other than assembly, such as various end forming applications, as well as tube and rod reducing.


ripjack13

ɹǝʇɹɐqpooʍ
Staff member
Administrator
Global Moderator
Full Member
Messages
30,951
Reaction score
37,896
Location
Connecticut
First name
Marc

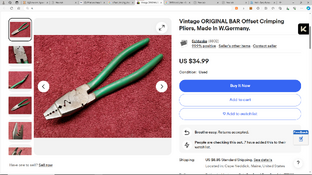

That is a vintage offset crimping plier. Made in W.Germany, this is an original BAR brand plier.


Schroedc

Still making sawdust, Maybe make some money....
Full Member
Messages
10,617
Reaction score
22,238
Location
Rushford MN
First name
Colin
Crimper for different types of terminals without insulation. We use one like that regularly in the factory I work in, I have one in my tool bag.


T. Ben

Member
Full Member
Messages
4,798
Reaction score
5,970
Location
Fairfax,Mn
First name
Troy
The large one towards the handle looks like the ones for putting the terminals on spark plug wires.
