Had an order for some custom revolver grips for a Taurus M44 revolver, so I got out of my comfort zone and decided to give them a try. These are full wrap-around made to fit the specific frame. Due to the size and thickness of the grips I finally found, after much looking, a suitable piece of dyed and stabilized curly maple on eBay. Sent pics to the customer and he decided that was the piece he wanted the grips made out of, which was one of the more expensive pieces of wood (per bdft) that I've purchased. After a fair amount of time deliberating on my process, I decided to just jump in and get to work. I originally planned on doing a prototype out of less expensive wood, but eventually opted not to. Below are progress pics and the finished grips, which are a little thicker than the original, which is want the customer requested. All in all, they weren't too bad, just took a little planning, some templates, and lots of sanding and filing to get them to their finished state.

Wood Blank ~6" x 6" x 7/8"


Templates for routing and fitting to frame, shaping, and sanding


Inside Grip Routing Stepped Layers


Fitting to Frame




Cut to Rough Shape.







Shaping, filing, sanding, fitting, sanding, filing, shaping, fitting, filing, sanding, shaping, fitting.....




To be continued....



[daniscool]

Had an order for some custom revolver grips for a Taurus M44 revolver, so I got out of my comfort zone and decided to give them a try. These are full wrap-around made to fit the specific frame. Due to the size and thickness of the grips I finally found, after much looking, a suitable piece of dyed and stabilized curly maple on eBay. Sent pics to the customer and he decided that was the piece he wanted the grips made out of, which was one of the more expensive pieces of wood (per bdft) that I've purchased. After a fair amount of time deliberating on my process, I decided to just jump in and get to work. I originally planned on doing a prototype out of less expensive wood, but eventually opted not to. Below are progress pics and the finished grips, which are a little thicker than the original, which is want the customer requested. All in all, they weren't too bad, just took a little planning, some templates, and lots of sanding and filing to get them to their finished state.

Wood Blank ~6" x 6" x 7/8"
View attachment 288023

Templates for routing and fitting to frame, shaping, and sanding
View attachment 288074

Inside Grip Routing Stepped Layers
View attachment 288076

Fitting to Frame
View attachment 288077

View attachment 288078

Cut to Rough Shape.
View attachment 288079

View attachment 288080

View attachment 288082


Shaping, filing, sanding, fitting, sanding, filing, shaping, fitting, filing, sanding, shaping, fitting.....
View attachment 288083

View attachment 288084

To be continued....

Making handles is so satisfying. I do most of my carving tools handles myself because it saves money, has a better result and is an amazing project to do.



[tocws2002]

Getting closer...






Comparison to the factory grip (new grip is a little thicker in the palm swell)

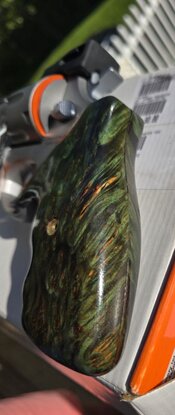

Finished Grips - Mulitple Coats of Tru-Oil
