90⁰ Blade For BU Handplane

[Asssiss]

Hello folks....I already postei this video from JKM about the blade using 90⁰ for plane difficult grain wood.Lie Nielsen stop to make this blade.

Recently I visited Canada and was in Ottawa and Kingston Lee Valley stores.I found a O1 50⁰ BU blade for my Bevel Up Smoothing plane (I have since 2013).The O1 is 20 bucks less expensive than PM-V11 and easier to hone.I just use a dimond stone and hone the sharp edge to 90⁰ in a very small amount (around 1 mm).

The results are outstanding.

See the pictures below:

Blades I kept original angle

Blade I transform in 90⁰ angle

Diamond stone at 400 and 1200 grain

90⁰ position

Just a small part

Hardwood using normal angle plane

Tear up

The same wood at 90⁰ angle...shavings so nice

Like a glass...you can see the part of deep tear out still there but around everything is perfect

Shining

Thanks for attention



[Nature Man]

Hello folks....I already postei this video from JKM about the blade using 90⁰ for plane difficult grain wood.Lie Nielsen stop to make this blade.

Recently I visited Canada and was in Ottawa and Kingston Lee Valley stores.I found a O1 50⁰ BU blade for my Bevel Up Smoothing plane (I have since 2013).The O1 is 20 bucks less expensive than PM-V11 and easier to hone.I just use a dimond stone and hone the sharp edge to 90⁰ in a very small amount (around 1 mm).

The results are outstanding.

See the pictures below:

Blades I kept original angle
View attachment 279884
Blade I transform in 90⁰ angle
View attachment 279885

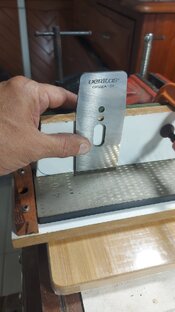

Diamond stone at 400 and 1200 grain
View attachment 279886

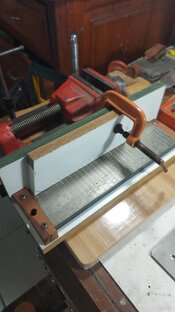

90⁰ position
View attachment 279887

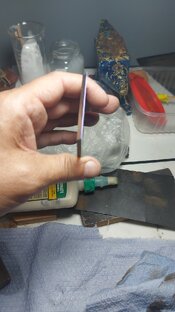

Just a small part
View attachment 279888

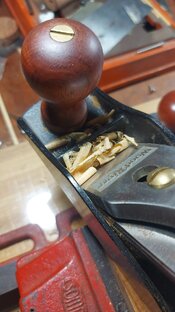

Hardwood using normal angle plane
View attachment 279889
Tear up
View attachment 279890

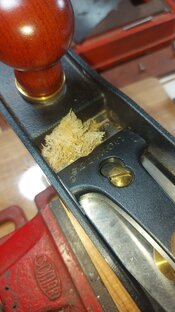

The same wood at 90⁰ angle...shavings so nice
View attachment 279891

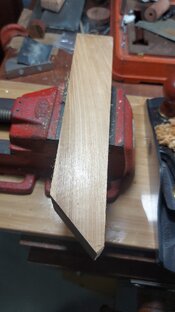

Like a glass...you can see the part of deep tear out still there but around everything is perfect
View attachment 279892
Shining
View attachment 279893
Thanks for attention

Must have been great to visit the Lee Valley store! I sure would like to go there sometime! The fine tuning you do with your tools is continually impressive! Chuck



[2feathers Creative Making]

Nice work. I need to rehone my blades on my plane as well. Maybe after the new years I will actually get time to do it...



[daniscool]

Impressive. I saw some of these on my last visit to the dictum store in Germany. They had so much stuff. Heck, they had American lathes and Japanese chisels beside each other.



[Asssiss]

Impressive. I saw some of these on my last visit to the dictum store in Germany. They had so much stuff. Heck, they had American lathes and Japanese chisels beside each other.

I visited Dictum in Munich back in 2014...very nice store.My first time touching Lie Nielsen tools.
Normaly I visited woodworking stores at cities I am visiting.
Axminster...Rockler...Woodcraft...Highland (Atlanta)...Lee Valley...and this is a very nice too :
Comercial Pazos (Madrid).The owner is so polite guy.

Here a video made from a Brazilian customer ...a lot of tools.I like to buy online but in person it is much better (in my opinion).

Thanks for attention



[Asssiss]

Must have been great to visit the Lee Valley store! I sure would like to go there sometime! The fine tuning you do with your tools is continually impressive! Chuck

Lee Valley is a very nice place to visit...two hours passed so fast.
